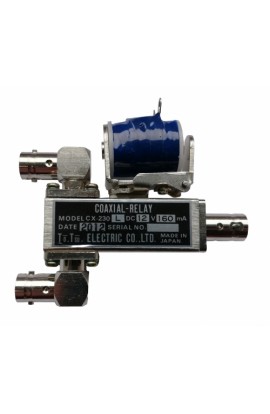

TOHTSU CX 230 L 24V

TOHTSU CX 230 L 24V

€ 149,00
Incl. B.T.W.

CX-230L 24V COAXIAL RELAY 3X BNC CONNECTOR

Aantal

CX 230L 24v Relay with 3 BNC sockets for frequencies up to 1 GHz.



MECHANICAL CHARACTERISTICS:
Contact Arrangement   SPDT
Operational Temperature   -25°C to +50°C
Max Temperature Rise   20°C
Weight   Approx. 230 g
Mounting   Two screws
Cable Connections   3 BNC-LR Type female connectors
ELECTRICAL CHARACTERISTICS:
Impedance   50 Ohms
Nominal Voltage   26 V DC
Voltage Range   24 V DC - 26 V DC
Current   160 mA @12 V DC 20°C
Coil Resistance   75 ±10% Ohms @ 20°C
RF PROPERTIES:
Frequency VSWR Isolation Ins. Loss RF Power Input
MHz max. -dB (min) -db (max) W
50 1.05 56 0.05 300
150 1.10 42 0.05 300
500 1.15 30 0.10 300
1000 1.30 24 0.20 200
ACTUATION DATA:
Pull In   10 V DC - 14 V DC (12 V DC nominal)
Drop Out   3 V DC min.
SWITCHING TIME:
Pull In   20 ms typical
Drop Out   15 ms typical
Life Expectancy   1.000.000 Operations min.
DIMENSIONS:


TYPICAL OPERATING CURVES:
SCHEMATIC:
