CX-800M

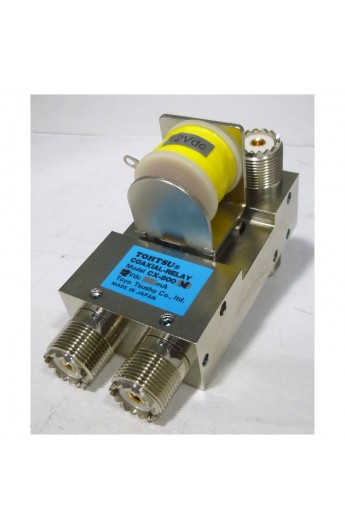

TOHTSU CX 800 M

€ 229,00
Incl. B.T.W.

TOHTSU CX-800M Coaxrelais - 1000 MHz

Aantal

MECHANICAL CHARACTERISTICS:
Contact Arrangement   DPDT
Operational Temperature   -25°C to +50°C
Max Temperature Rise   20°C
Weight   Approx. 365 g
Mounting   Two MTG holes
Cable Connections   6 M (UHF) Type female connectors
ELECTRICAL CHARACTERISTICS:
Impedance   50 Ohms
Nominal Voltage   12 V DC
Voltage Range   10 V DC - 14 V DC
Current   226 mA @12 V DC 20°C
Coil Resistance   53 ±10% Ohms @ 20°C
RF PROPERTIES:
Frequency VSWR Isolation Ins. Loss RF Power Input
MHz max. -dB (min) -db (max) W (PEP)
50 1.10 50 0.15 1000
150 1.15 48 0.15 1000
500 1.15 37 0.20 800
1000 1.18 28 0.20 500
ACTUATION DATA:
Pull In   10 V DC - 14 V DC (12 V DC nominal)
Drop Out   3 V DC min.
SWITCHING TIME:
Pull In   20 ms typical
Drop Out   15 ms typical
Life Expectancy   1.000.000 Operations min.
DIMENSIONS:


TYPICAL OPERATING CURVES:
SCHEMATIC:
