CX-120P

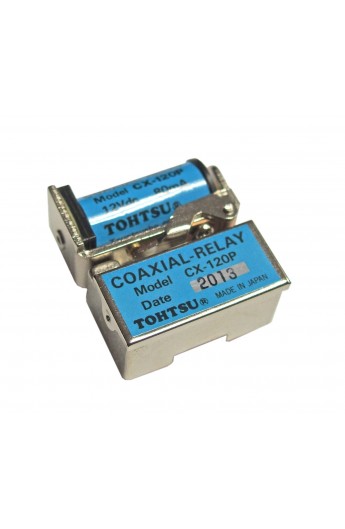

TOHTSU CX 120 P

€ 50,00
Incl. B.T.W.

TOHTSU CX 120 P  12v dc

Aantal

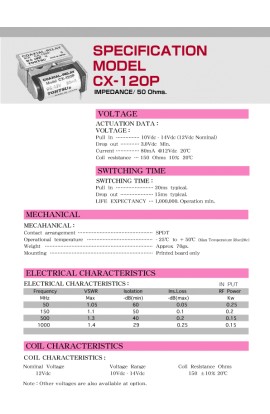

MECHANICAL CHARACTERISTICS:
Contact Arrangement   SPDT
Operational Temperature   -25°C to +50°C
Max Temperature Rise   20°C
Weight   Approx. 70 g
Mounting   Printed Board only
ELECTRICAL CHARACTERISTICS:
Impedance   50 Ohms
Nominal Voltage   12 V DC
Voltage Range   10 V DC - 14 V DC
Current   80 mA @12 V DC 20°C
Coil Resistance   150 ±10% Ohms @ 20°C
RF PROPERTIES:
Frequency VSWR Isolation Ins. Loss RF Power Input
MHz max. -dB (min) -db (max) W
50 1.05 60 0.05 250
150 1.10 50 0.10 200
500 1.30 40 0.20 150
1000 1.40 29 0.25 150
ACTUATION DATA:
Pull In   10 V DC - 14 V DC (12 V DC nominal)
Drop Out   3 V DC min.
SWITCHING TIME:
Pull In   20 ms typical
Drop Out   15 ms typical
Life Expectancy   500.000 Operations min.
DIMENSIONS:


TYPICAL OPERATING CURVES:
SCHEMATIC:




All technical data are subject to change 2009/07
