CX-531N

TOHTSU CX 531 N

€ 105,99
Incl. B.T.W.

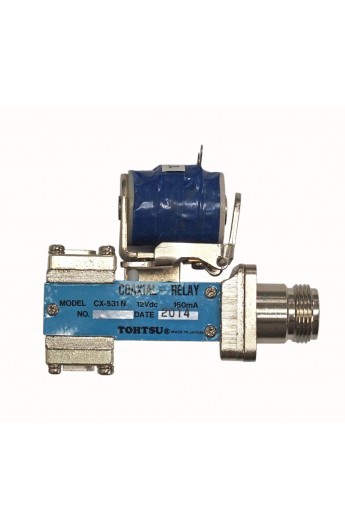

TOHTSU CX-531N Coaxrelais - 1500 MHz

Aantal

MECHANICAL CHARACTERISTICS:
Contact Arrangement   SPDT
Operational Temperature   -25°C to +50°C
Max Temperature Rise   20°C
Weight   Approx. 200 g
Mounting   Four screws
Cable Connections   1 N type female connector, directly connect cables
ELECTRICAL CHARACTERISTICS:
Impedance   50 Ohms
Nominal Voltage   12 V DC
Voltage Range   10 V DC - 14 V DC
Current   160 mA @12 V DC 20°C
Coil Resistance   75 ±10% Ohms @ 20°C
RF PROPERTIES:
Frequency VSWR Isolation Ins. Loss RF Power Input
MHz max. -dB (min) -db (max) W
50 1.01 65 0.15 200
150 1.02 65 0.15 200
500 1.03 40 0.20 150
1000 1.05 20 0.25 100
1500 1.20 15 0.30 100
