KG-D901 DMR PLUS

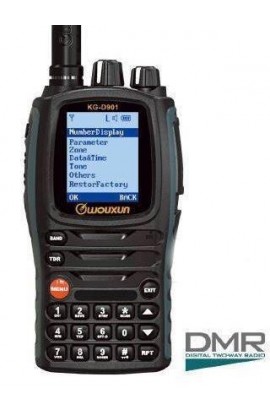

Wouxun KG D 901 DMR PLUS

€159.00
Tax included
Wouxun KG-D901 DMR PLUS Portofoon
Compatible with Motorola Tier I & II and Hytera DMR radios Digital protocol ETSI TS 102 361-1, -2, -3 TDMA Digital Protocol ETSI TS 102 361-1, -2, -3

Description of Features:
  • English Voice Guide
  • Power Save
  • VOX Function
  • Transmit Overtime Forbidden
  • Inner Microphone Gain
  • Low Voltage Voice Prompt
  • SOS Alarm
  • ANI ID
  • Scan Group Setting
  • Scan Channel Selection
  • Digital Encryption
  • LED Flash light
  • Multi-Function Program for Side keys
  • One Key Switch Digital / Analogue Mode
  • One Key Switch High / Low Power
  • PTT ID
  • English Typewriting
  • Contact Edit
  • English Menu
  • Remote Control
  • Remote Monitor
  • MSG Send and Receive
  • Intelligent Charger

    Product Specifications:

    Integral part
  • Mode: DMR
  • Frequency Range: 400-470MHz
  • Channel Spacing: Digital : 12.5KHz
  • Channel number: 1024
  • Zones: 64x
  • Standard Package: 2000mAh , Lithium-ion
  • Working temperature: -20℃~+50℃
  • Storage temperature: -40℃~+80℃
  • Working Voltage: 7.4VDC
  • Working Currency: < 1300mA
  • Weight: 261 g
  • Size: 65 x 33 x 124 (mm)

    Receiver
  • Frequency Stability: ±2.5ppm
  • Inter-modulation: 65dB
  • Co-channel Rejection: -8dB@12.5KHz
  • Spurious Inhibition: -57dBm@<1GHz , -47dBm@>1GHz
  • Block: 84dB
  • Adjacent Channel Selectivity: 60dB@12.5KHz
  • Spurious Response: ≥70dB
  • Regulated Audio Power: 1W
  • Digital Sensitivity: 0.3µV / -117.4dBm(BER 5%) , 0.7µV / -110dBm(BER 1%)


    Receiver (wide/narrow)
  • Transmission Power: ≤5W
  • FM Noise: 40dB@12.5KHz
  • Transmission Spurious: -36dBm@<1GHz , -30dBm@>1GHz
  • Adjacent Power: -60dB@12.5KHz
  • Bandwidth Limit: 2.5KHz@12.5KHz
  • Spare Time Slot Power: -57dBm
  • Modulation Characteristics: +1dB~-3dB
  • Digital Transmission Bit Error Rate: ≤3%
  • Output Power: ≤5W
  • 4FSK Digital Modulation Method: 12.5KHz(data only):7K60FXD
    12.5KHz(data+voice):7K60FXE
