Alinco-DR-B185/HE

Alinco-DR-B185/HE

€185.00
Tax included

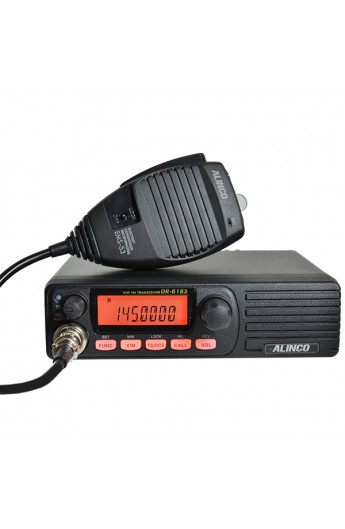

Alinco-DR-B185/HE  144MHz FM Mobile Transceiver
DR-B185HE

With an incredible power range from 5 to 85W, this new VHF mobile transceiver is one of the most powerful 2m models we have seen.

Very neat and simple front panel layout too, with a large clear well lit display.

features :

  • Frequency coverage : 136.000-174.000 MHz
  • Transmit frequency range: 144.000-148.000 MHz
  • FM minimum power: 5w
  • FM maximum power: 85w
  • Transceiver maximum current : 20A
  • Mode :  FM
  • Power requirements : 12-15VDC

  • general information :
  • 85/5 watts, H/L power settings
  • Frequency range: TX/RX: 144-147.995 MHz (FM), RX: 136-173.995 MHz
  • Operating modes: 16K0F3E (FM), 11K50F3E (Narrow-FM)
  • Channel steps: 5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 kHz
  • Memory channels: 500 channels
  • Antenna impedance: 50 ohms unbalanced (SO-239)
  • Frequency stability: Plus/minus 2.5ppm TCXO
  • Cloning capability
  • CTCSS, DCS encode/decode, DTMF encode
  • Clean, clear Alinco audio
  • Super-wide alphanumeric display
  • Wide and narrow FM modes
  • Time Out Timer
  • Power supply: 13.8V DC nominal, plus/minus 15 percent
  • Polarity: Negative ground
  • Current drain: Approximately 20.0A TX High, 6A TX Lo, 0.5A squelched
  • Usable temperature range: 14 degrees F to 140 F
  • Dimensions (w/o projection): 6.44 in. (W) x 1.73 in. (H) x 7.21 in. (D)
  • Weight: 3.31 lbs.
  • CTCSS tones: encode/decode 39 tones
  • Digital Coded Squelch: encode/decode 104 codes
