  • Online only

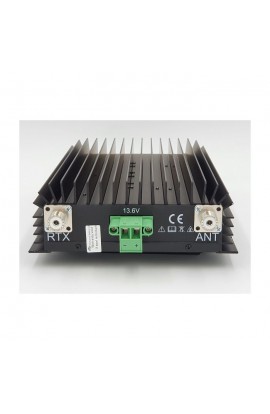

RM KL503HD

RM KL 503 HD

€325.00
Tax included

Amplifier Mobile, 25 - 30 MHz, Including Pre-Amplfier
 Supply Voltage: 12 - 14 VDC
 Modes:  AM/FM/SSB/CW/SSTV/Data Modes
 Input: 1 - 35 Watts (all modes)
 Output: 300 Watts Max AM/FM; 450 Watts Max SSB/CW.

FEATURES, FUNCTIONS AND SPECIFICATIONS:
• Operation Frequency: 25-30 MHz (10m Amateur HF Band)
• Modulation Types: SSB, CW, AM, FM, data etc (All narrowband modes)
• Transistor: 8x RM3 Mosfet + 1x RM4 Mosfet Driver
• Max I/P Current: 30 Ampere
• Power Supply: 13 VDC +/- 1V 40A
• Input Fuse (Internal): 3x 10 Ampere (5x20 mm Fast)
• Input RF Power: 1-35 Watt max (All modes)
• Output RF Power: 300 Watt max
• Maximum bypass power (Amplifier off): 50 Watt max
• Input VSWR: 1.1 – 1.5:1
• Output VSWR Maximum: 2.5:1
• Harmonic Ouput: >-50dBc 25-30 MHz

No customer reviews for the moment.

Write your review

RM KL 503 HD

Amplifier Mobile, 25 - 30 MHz, Including Pre-Amplfier
 Supply Voltage: 12 - 14 VDC
 Modes:  AM/FM/SSB/CW/SSTV/Data Modes
 Input: 1 - 35 Watts (all modes)
 Output: 300 Watts Max AM/FM; 450 Watts Max SSB/CW.
