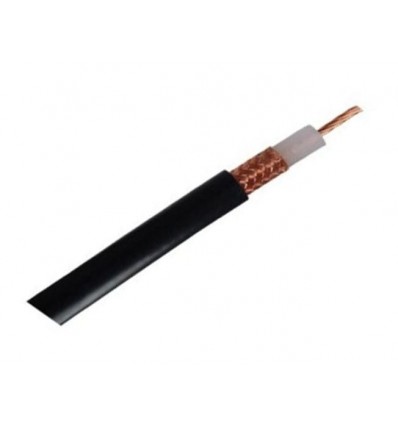

RG-213/UBX 50M

Construction :

• Inner conductor Plain copper 7 x 0.75 mm
• Dielectric Low density PE Φ6.50 ± 0.15 mm
• Outer conductor (shield) Plain copper 168 x 0.15 mm
• Shield coverage 91%
• Sheath PVC or LSZH Φ9.50 ± 0.18 mm



  Electrical & Mechanical Characteristics :


• Impedance 50±3 Ohm
• Nominal capacitance 100 pF/m
• Velocity of propagation 66%
• Insulation resistance >2000 Mohm.Km
• Inner conductor resistance 6 Ohm/Km
• Outer conductor resistance 7 Ohm/Km
• Operating temperature range -30 °C - +70 °C
• Copper weight 59.6 Kg/Km
• Cable weight (approx.) 135.1 Kg/Km
• Screening effectiveness >55 dB
