RG-213/UBX

RG 213/UBX

€ 1,85
Incl. B.T.W.

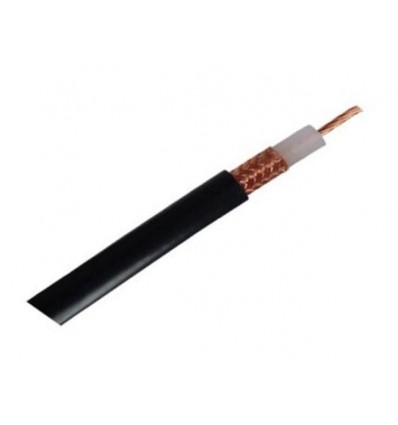

RG-213/UBX  50Ohm Coax Cable

Aantal

Construction :

  • Inner conductor Plain copper 7 x 0.75 mm
  • Dielectric Low density PE Φ6.50 ± 0.15 mm
  • Outer conductor (shield) Plain copper 168 x 0.15 mm
  • Shield coverage 91%
  • Sheath PVC or LSZH Φ9.50 ± 0.18 mm



    Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
  • Nominal capacitance 100 pF/m
  • Velocity of propagation 66%
  • Insulation resistance >2000 Mohm.Km
  • Inner conductor resistance 6 Ohm/Km
  • Outer conductor resistance 7 Ohm/Km
  • Operating temperature range -30 °C - +70 °C
  • Copper weight 59.6 Kg/Km
  • Cable weight (approx.) 135.1 Kg/Km
  • Screening effectiveness >55 dB

http://www.k-po.com/data/shop/download/7462/RG%20213%20UBX%20(X).pdf
