Nissei DG-503-MAX 1.6-60 Mhz / 125-525 Mhz

Nissei DG-503-MAX 1.6-60 Mhz / 125-525 Mhz

€ 175,00
Incl. B.T.W.

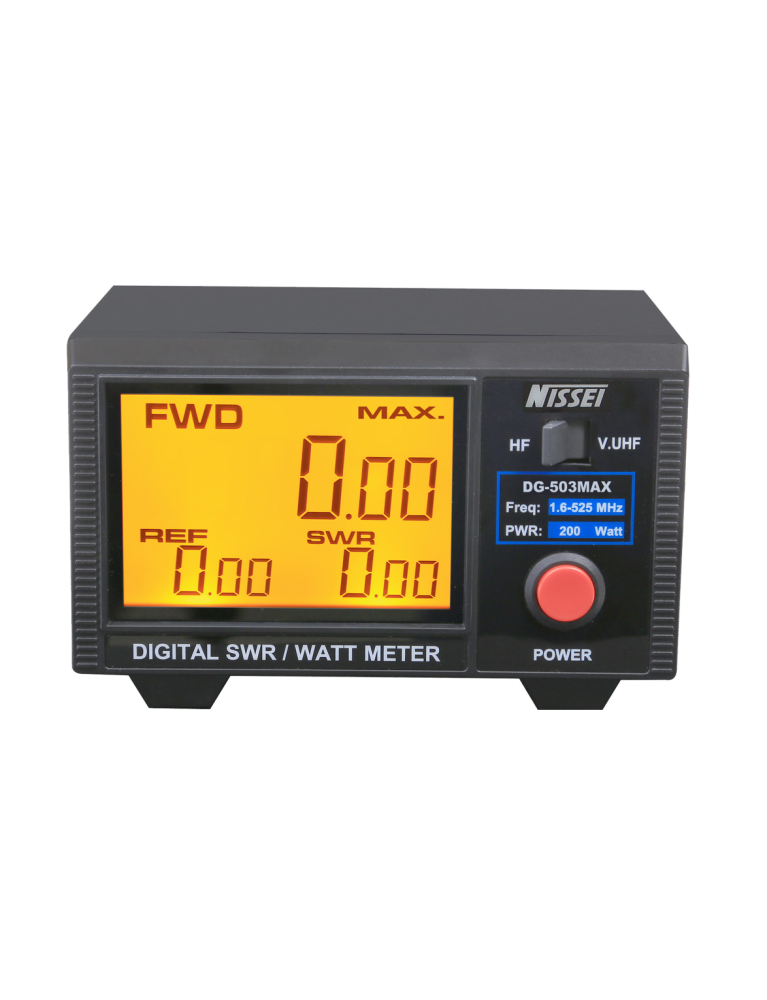

Nissei DG-503 MAX Digital SWR and Watt meter

Aantal

Nissei DG-503 MAX is a digital SWR and Watt meter that can measures CW, FM, FDMA modes and also DMR (TDMA), AM and SSB (PeP).

FEATURES

  • New feature for the MAX version: Measurements in MAX mode: DMR (TDMA), AM and SSB (PeP)
  • 3.5″ LCD screen
  • Backlight power supply at 12 Vdc (cable included)
  • Frequency: 1.6-60 Mhz / 125-525 Mhz
  • Calibration points: 28 MHz / 145 MHz / 435 MHz
  • Measurements in analog mode: CW, FM, FDMA
  • Loss: less than 0.1 dB
  • Maximum power: 200 W
  • Minimum power: 1 W
  • Accuracy: +/- 5%
  • Impedance: 50 ohms
  • Power supply: 13.8 V.C.C.
  • 4 PL connectors
  • Dimensions: 140 x 82 x 122 mm
  • Weight: 750 g
