Dynascan AT-5555 PLUS/N

€ 199,00
Incl. B.T.W.

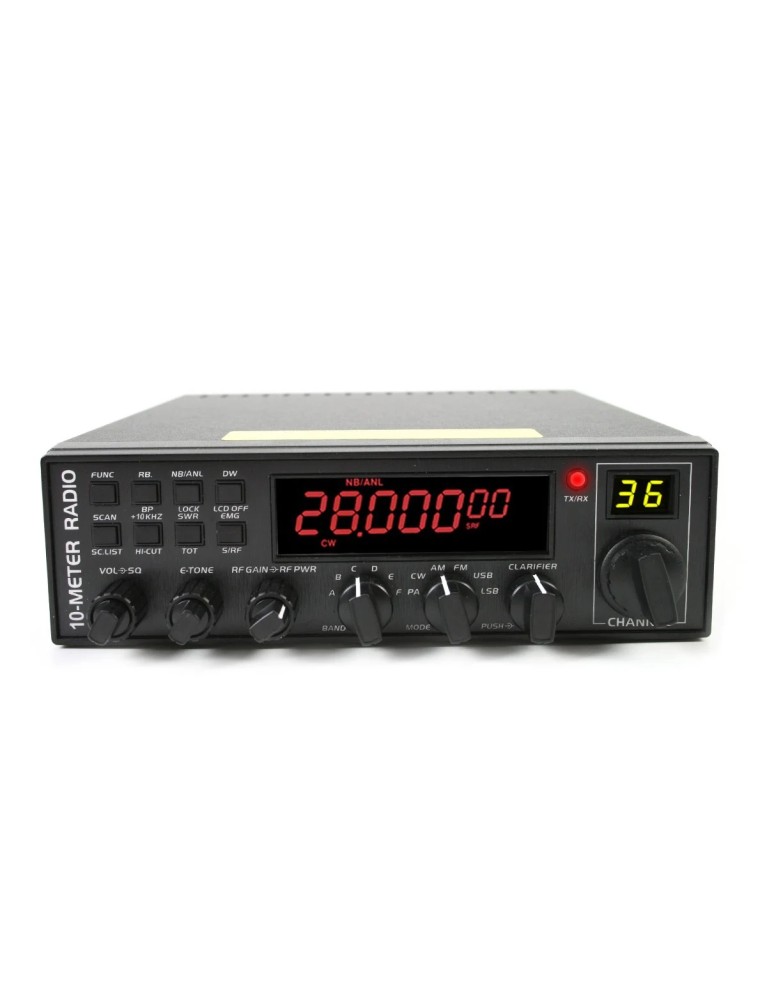

Dynascan AT-5555 PLUS/N Mobile Transceiver 10M multimode

Aantal

The Dynascan AT-5555 PLUS/N is a compact multimode 10-meter transceiver with AM, FM, LSB, USB, CW, covers HF frequencies 28,000 -29,700 MHz, and has an NCR Noise Suppressor filter.

FEATURES:

  • Large LCD screen
  • Two screens for viewing channels
  • Illuminated screen
  • Operating modes: PA, CW, AM, FM, USB and LSB
  • Six memory banks in total (A, B, C, D, E, F) to be able to individually program at least 60 channels
  • Tuning steps of 10Hz, 100Hz, 1KHz, 5KHz or 10KHz
  • Multiple operating modes of the CLARIFIER
  • Flexible menu functions and PC programming software
  • ECO function (ECHO)
  • SQ and ASQ function (only in FM and AM modes)
  • RF gain adjustment
  • Transmit power adjustment
  • Functions: SCAN, RB, NB/ANL, Double listening, Roger beep, Voice command indication, Keyboard beep, +10 KHz, SWR, S/RF, Supply voltage display, TOT, HI-CUT, Call Emergency, Keypad Lock, VOX, CTCSS/DCS, Noise Suppressor, Adjustable Microphone Noise, Receiver Noise Reduction.
  • SWR and supply voltage protection
  • Compatible with electronic and dynamic type microphones.
  • NCR filter

SPECIFICATIONS:

  • Frequencies: 28,000MHz.-29,700MHz. (TX/RX)
  • Number of channels: 60 (programmable) in each band
  • Power: 45W (AM/CW) / 40W (FM) / 35W (SSB)
  • Audio output power: 4W
  • Modulation type: AM/FM/SSB
  • Impedance: 50 ohms
  • Consumption: 9A. (maximum)
  • Temperature range: -30°C to +50°C
  • Antenna connector: UHF, SO-239
  • Power: 13.8 V.D.C. (nominal)
  • Dimensions: 280 x 250 x 60 mm.
  • Weight: 1.5 Kg.
