HV-CS3000-COMBO

HV CS 3000 COMBO

€ 499,00
Incl. B.T.W.

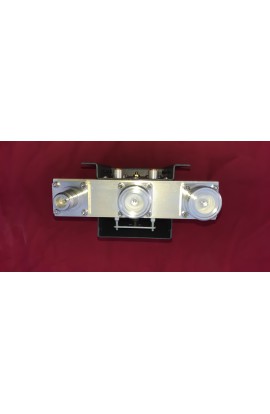

High power coaxial relay  HV-CS3000-COMBO 3000 W

Aantal

High power coaxial relay.

Technical data

Frequency range DC up to 1.5 GHz
Impedance 50 Ohm
Insertion loss 0.19 dB / 1200 MHz
Max. power 3000 W CW / 144 MHz
Isolation 61 dB / 432.5 MHz
Contact materials AgCu3, gold plated
Supply voltage 12 to 13.8 V DC
Current 0.72 A / 20 °C
Connectors com 7/16 female tx=7/16 female  rx=N female
Switching time approx. 40 ms
Dimensions 150x115x75 mm
Weight 1.6 kg
