Features
Display: Yes, large LCD displayVOX function: YesDTMF: Yes, and 1750 toneCrossband repeater function: YesEmergency (SOS) function: YesFlashlight: YesHigh/low power selection: YesBattery capacity: Li-Ion 1600 mAh (7,2 V)Accessory connector: 2-pin Kenwood connector (K)USB C connector: Yes, can be used for chargingScrambler: Yes, 10 group scramblerAM/FM aviation band reception: YesNOOA weather reception: YesPassword protection: YesCTCSS/DCS: YesScan: YesLess
Electrical data
Frequency step: 12.5 kHz / 25 kHz /Channels: 200 Memory channels / 10 Stored FM radio channel quantity / 10 NOAA ChannelsWide and narrow bandwidth selection: YesOperating temperature: -20℃ to +60℃Frequency stability: ±1.0 PPM
Transmitter
Power output (Watts): VHF: 5 Watts / UHF: 4 WattsModulation limit: F3E (12.5 kHz) F3E (25 kHz)Adjacent channel power: 12.5 kHz: 60 dB / 25 kHz: 70 dBAudio distortion: ≤5%Max. frequency deviation: 12.5 kHz: ≤2.5 kHz / 25 kHz: ≤5 kHzStray power: ≤7.5 uWResidual modulation: 40 dBEmission current: ≤1.5 ALess
Receiver
Sensitivity 50-76 MHz: -121 dBm for 12 dB SINAD (FM)Sensitivity 76-108 MHz: -110 dBm for 20 dB SINAD (WFM)Sensitivity 108-135.9975 MHz: -113 dBm for 10 dB SINAD (AM)Sensitivity 108-135.9975 MHz: -121 dBm for 12 dB SINAD (FM)Sensitivity 136-173.9975 MHz: -123 dBm for 12 dB SINAD (FM)Sensitivity 174-349.9975 MHz: -123 dBm for 12 dB SINAD (FM)Sensitivity 350-399.9975 MHz: -123 dBm for 12 dB SINAD (FM)Sensitivity 400-469.9975 MHz: -123 dBm for 12 dB SINAD (FM)Sensitivity 470-599.9975 MHz: -121 dBm for 12 dB SINAD (FM)Audio frequency: ≥0.5 WAudio distortion: ≤10%Less
Mechanical data
Length: 60 mmHeight: 115 mmWidth: 37,5 mmWeight: 234 gramAntenna connector: SMA male
Inside the box
Transceiver: YesBattery: Li-Ion 1600 mAhCharger: Desk charger with adapterAntenna: YesInstallation manual: EnglishBelt clip: YesHand strap: YesLess
1 product uit dezelfde categorie:

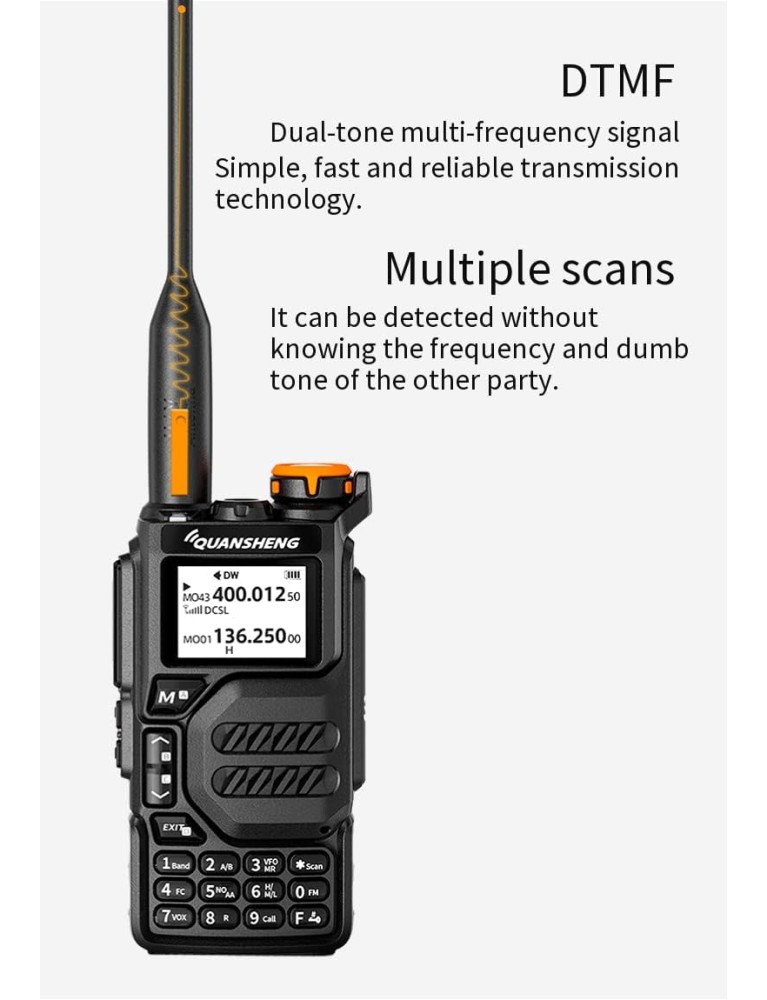

The Quansheng UV-K5 is a dual band transceiver with VOX, USB C and desktop charging! You can use the radio for 144-146 / 430-440 MHz and will be delivered with a 1600 mAh Li-Ionbattery pack.
