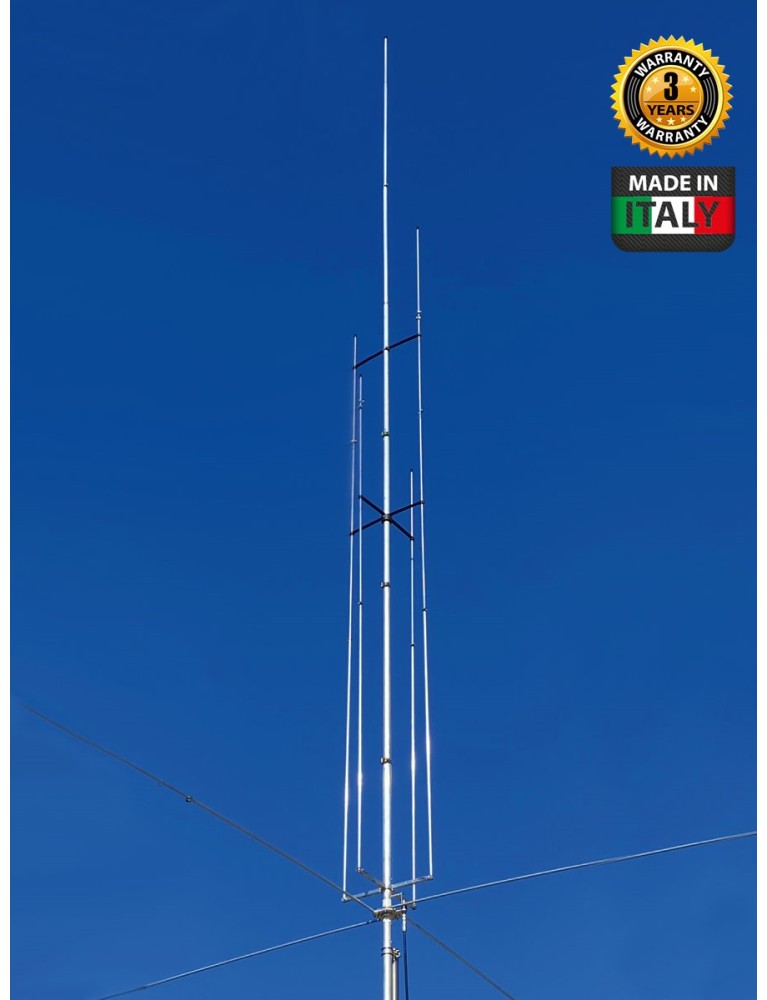

Vertical multiband 1/4 λ Ground Plane base-fed antenna
HF 20, 17, 15, 12, 10m + VHF 6m
Powered at the base
Max Input Power: 3 kW
Total Height: 6,75 m
Antenna weight: 7.8 kg
| Electrical Data | Mechanical Data | |||||
|---|---|---|---|---|---|---|
| Type | Ground Plane 1/4 λ with parallel stubs | Materials | Aluminum Alloy AW6063-T66 hard drawn tube, Fiberglass, Brass, PTFE. All hardware are made of SS AISI-304 and 316 |
|||
| Frequency Range | HF 20, 17, 15, 12, 10 + VHF 6m | Wind surface area | 0,4m2 | |||
| Impedance | 50Ω Unbalanced | Wind survival (no ice) | 130 km/h (braked) | |||
| Radiation Type | Omnidirectional | Total Height | 6,75m | |||
| Polarization | Linear – Vertical | Stylus length | 6,2m | |||
| Gain | 0 dBd – 2,15 dBi | Radial length | 2,7m | |||
| Bandwidth with SWR 2 | ≥ 20, 17, 15, 12 full band 10&6m > 1.5:1 | Mounting mast bracket | ø 40-54 mm | |||
| SWR @resonance | ≤1.5:1 (Typical) | Antenna Net weight | 7,8 Kg | |||
| Max. Input Power | 3000 Watts continuos all mode | Package dimensions | 14x14x145 cm | |||
| Feed system | Direct - connected to DC ground | Weight in pack | 9,1 Kg | |||
| Input connector | UHF female - PTFE insulator, gold-plated centre pin | |||||
