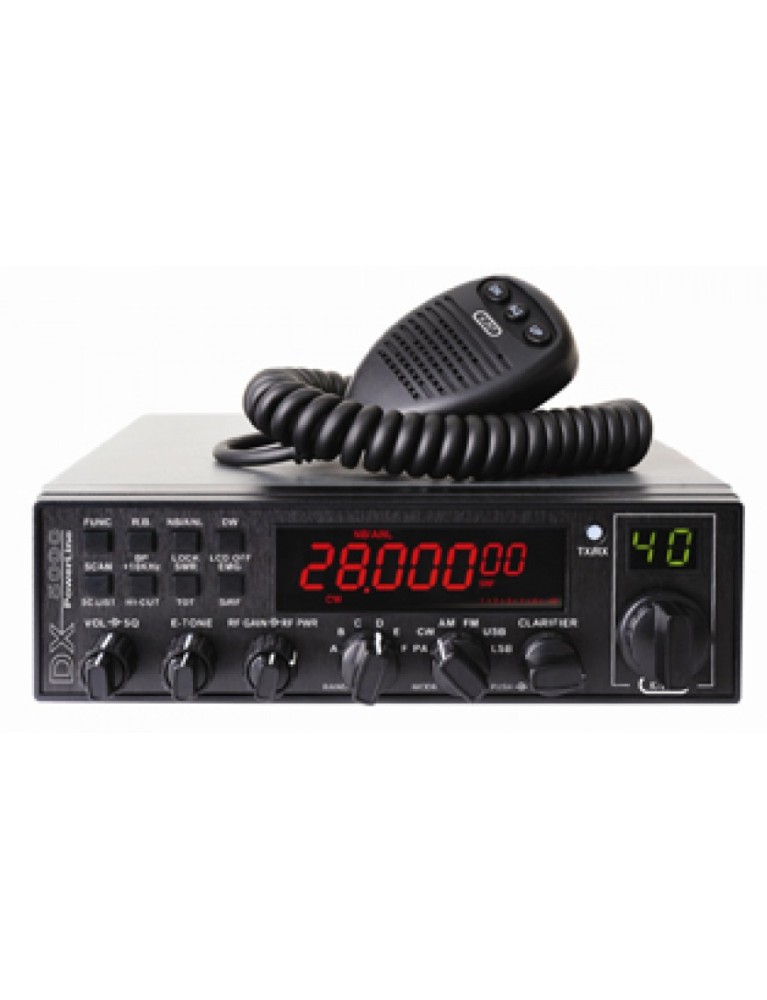

K-PO DX-5000 | AM/FM/SSB 10/11 Meter Mobile Amateur Transceiver, The 6th generation K-PO DX-5000 is a fully featured amateur radio HF mobile transceiver which is pre-programmed the the 10m amateur band (28.000 - 29.700 Mhz) however you can unlock the export band without connecting to a PC (see below).

Inside the sleek black design of the DX5000 is an impressive array of features, including: 40w FM/SSB output (12w AM), dual frequency and channel display, 6 programmable bands, echo, scan, PA facility, RF gain, dual watch, time-out timer, voltage display, roger bleep, adjustable power, noise blanker and ANL, built in SWR meter, hi-cut filter and input voltage protection.

The radio has 6 bands of 60 channels that can be programmed for export purposes from 25.615 - 30.105.

Version 6 - No cable and software required

Band selection access via buttons on radio: Band 1 = 28.000 - 29.700

Band 2 = 25.615 - 28.305

K-PO DX-5000 Specifications

General:

Frequency:25.615MHZ—30.105MHZ (Programmable)

Frequency Band:A/B/C/D/E/F

Channels:60 channels (programmable) in each band

Frequency Control:Phase-Locked-Loop Synthesizer

Frequency Step10Hz 100Hz 1KHz 10KHz

Frequency Tolerance-0.005%

Frequency Stability0.001%

Temperature Range-30℃to +50℃

Microphone:Plug-in dynamic; with push-to-talk /UP/DN/ ASQ switch and coiled cord

Input Voltage:DC 13.8V normal, 15.9V max; 11.7V min Transmit: AM full mod 5A Receiver: Squelched 0.6A SSB 40W PEP output 9A

Size:280 x 250 x 60 mm

Weight:2.8 Kg

Antenna ConnectorUHF SO239

Transmitter:

RF output power:AM/CW: 12W FM: 40W SSB: 40W(PEP)

Modulation:High and low level class B

Amplitude Modulation: AM

Varied Capacitance Frequency Modulation:FM

Inter-modulation Distortion:SSB: 3rd order, more than -25dB; 5th order, more than -35dB

SSB Carrier Suppression:55dB

Unwanted Sideband:50dB

Frequency Response AM & FM:450 to 2500HZ

Sensitivity:SSB: 0.25μV for 10dB(S+N)/N at greater than 1/2-watt of audio output.

AM:1.0μV for 10 dB(S+N)/N at greater than 1/2watt of audio output.

FM: 1.0 μV for 20 dB (S+N)/N at greater than 1/2 watt of audio output.

Sensitivity:AM/FM:6dB@3KHz,50dB @9KHz

SSB: 6 dB@2.1KHz,60dB @3.3KHz.

Image Rejection:More than 65 dBt.

IF Frequency:AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF

SSB: 10.695 MHz.

Adjacent-Channel:Adjacent-Channel

RF Gain Control:45 dB adjustable for optimum signal reception

Automatic Gain Control (AGC):Less than 10 dB change in audio output for inputs from 10 to 100,000 microvolt.

Squelch:Adjustable; threshold less than 0.5 μV

Automatic Squelch Control(only AM/FM) 0.5 μV.

ANL:Switchable

Noise Blanker:RF type, effective on AM/FM and SSB

Audio Output Power:4 watts into 8 ohms

Frequency Response:300 to 2800 Hz

Built-in Speaker:>8 ohms, round.
